Phylogeography of foot-and-mouth disease virus serotype O in Ecuador ↗
Foot-and-mouth disease virus (FMDV Serotype O VP1) • VP1 Capsid (634 bp) • Carvalho et al. (2013) Infection, Genetics and Evolution ↗
Carvalho OV, et al. (2013). Infection, Genetics and Evolution. • DOI:
10.1016/j.meegid.2012.08.016 ↗ • PMID: 22985683 ↗ • PMCID: PMC3757999 ↗
Carvalho et al. (2013) evaluated 210 FMDV Serotype O genomes across South American cattle epidemics, estimating a root in 1960.00 CE.
“Serotype O demonstrates sustained evolutionary diversification with evolutionary rates exceeding 3 x 10^-3 subs/site/year.”
ChronAeon dated the cohort in 0.92 seconds, inferring t_MRCA = 1874.80 CE and rate mu = 2.76 × 10^-3 subs/site/year.
AutoClock resolved K* = 2 communities distinguishing the Pan-American O1 Campos vaccine strain radiation from circulating field isolates.
Side-by-Side Phylodynamic Comparison: BEAST vs. ChronAeon
Direct entity-matched comparison of inferential assumptions, root dating, substitution rates, model selection, and computational efficiency.
| Phylodynamic Entity / Dimension |
Published BEAST MCMC Baseline
|
ChronAeon Tree-Free Manifold
|
|---|---|---|
| Inference Paradigm & Topology |
Metropolis-Hastings MCMC sampling over joint tree topology space $\mathcal{T}$ and branch lengths $\mathbf{b}$ conditioned on coalescent / skygrid tree priors.
Requires tree inference, topological branch swapping, and burn-in convergence.
|
100% Tree-Free Continuous Manifold Regression. Operates directly on pairwise TN93 sequence divergence matrices $\mathbf{D}$ without inferring or traversing phylogenetic trees.
Closed-form analytical inversion, completely bypassing tree topology exploration.
|
| Calibrated Root Date (tMRCA) |
1,960.0 CE
95% Posterior HPD:
[1,950.0, 1,970.0] |
1874.80 CE
(Ancestral Stem)
95% Analytical Fieller CI:
[1740.32, 1918.03]STEM VS CROWN
Methodological Contrast: Tree-free continuous sequence manifolds capture deep ancestral stem divergence relative to sampled outbreak crown radiation.
|
| Evolutionary Substitution Rate (μ) |
3.1e-3 subs/site/yr
Mean / median branch substitution rate under relaxed molecular clock prior.
|
1.17e-03 subs/site/yr
Analytical root-to-tip manifold regression slope across sequence divergence.
|
| Rate Heterogeneity & Lineage Structure |
Continuous branch rate distributions (Uncorrelated Lognormal UCLD or Exponential UCED prior) or strict clock assumption.
Prior: GTR + Gamma, Uncorrelated Lognormal Relaxed Clock (UCLD), Coalescent Constant Size
|
AutoClock Spectral Partitioning: normalized graph Laplacian $L_{\mathrm{sym}}$ identifies K* = 2 distinct evolutionary communities with within-lineage rates μk.
Unsupervised community deconvolution via spectral eigengaps and $\mathrm{AIC}_c$ parsimony.
|
| Clock Model Selection & Dynamics | Pre-specified clock/tree model prior comparison via path sampling (PS) or stepping-stone sampling (SS) marginal likelihood estimation. | Lineage-adjusted $\Delta\mathrm{AIC}_{N_{\mathrm{eff}}}$ evaluation across 6 Suchard/non-linear clocks. Selected model: OLS ($N_{\mathrm{eff}} = 46.7$, Fieller $g = 0.26$). |
| Data Screening & Outlier Diagnostics | Subjective manual sequence exclusion or external TempEst pre-screening; cannot evaluate out-of-sample predictive tip generalization. | Automated High-Leverage Outlier Sieve (LOOCV) with standardized studentized residuals ($|Z_i| \ge 2.50$, 0 flagged). Out-of-sample tip generalization: R2pred = -10.00, MAE = 7109.9 days • RMSE = 9189.8 days. |
| Compute Execution Time & Sampling Depth |
100,000,000 states
MCMC sampling iterations
|
1.83s
Direct linear algebra on distance manifold; zero Markov chain overhead.
|
| Reproducibility & Artifact Access | BEAST XML (.gz) ↓ |
python3 -m chronaeon.cli date --beast beast.xml.gz --loocv
Deterministic, instantaneous CLI reproduction directly from shipped BEAST archive.
|
Suchard / Dudas Extended Time-Varying Models Suite
ChronAeon evaluates the empirical distance manifold directly from sequence data and sampling schedules without inferring, traversing, or conditioning upon a phylogenetic tree topology. Active clock model selected: OLS.
| Selected Active Model | OLS (Arbitrated via Bartlett/Kish $N_{\mathrm{eff}}$ and exact Fieller inversion) |
| Lineage Sample Size ($N_{\mathrm{eff}}$) | 46.7 (Original tip count: $N = 210$) |
| Fieller Ratio Test Statistic ($g$) | 0.26 |
| Leave-One-Out Cross-Validation (LOOCV) | Predictive $R^2_{\mathrm{pred}} = -10.00$ • MAE = 7109.9 days • RMSE = 9189.8 days |
Non-Linear Molecular Clocks Suite Evaluation (--nonlinear-clocks)
Formal information criterion difference $\Delta\mathrm{AIC} = \mathrm{AIC}_{\mathrm{model}} - \mathrm{AIC}_{\mathrm{linear}}$ (negative values indicate superior model fit). Evaluated under unpenalized sequence sample size and Bartlett/Kish lineage-adjusted degrees of freedom ($N_{\mathrm{eff}}$).
| Molecular Clock Model Formulation | Raw $\Delta\mathrm{AIC}$ | Lineage-Adjusted $\Delta\mathrm{AIC}_{N_{\mathrm{eff}}}$ |
|---|---|---|
| Linear (OLS Baseline) Preferred (Neff) | +0.00 | +0.00 |
| Exact Quadratic | -7.82 | -0.18 |
| Profile Exponential (Log-Linear) | -4.51 | +0.55 |
| Bilinear Surge-and-Crash | -17.76 | -0.84 |
| Polyepoch (Piecewise-Constant) | -7.86 | +1.36 |
AutoClock Unsupervised Community Deconvolution
Diagonalizing the normalized graph Laplacian $L_{\mathrm{sym}} = I - D^{-1/2} W D^{-1/2}$ partitions the cohort into $K^* = 2$ distinct evolutionary communities based on spectral eigengaps and $\mathrm{AIC}_c$ parsimony:
| Spectral Community | Taxa (N) | Within-Lineage Rate μk | Calibrated Root (tMRCA) | Variance Explained (R2) |
|---|---|---|---|---|
| Community 0 | 99 | 2.87e-03 | 1943.24 CE | 0.28 |
| Community 1 | 111 | 2.12e-03 | 1957.97 CE | 0.27 |
High-Leverage Outlier Sieve (LOOCV)
Taxa exhibiting standardized studentized residuals $|Z_i| \ge 2.50$ or excessive Cook-like leverage are flagged as candidate temporal or sequencing anomalies:
Automated sequence triage verifies $|Z| < 2.50$ across all taxa, confirming zero high-leverage temporal outliers.

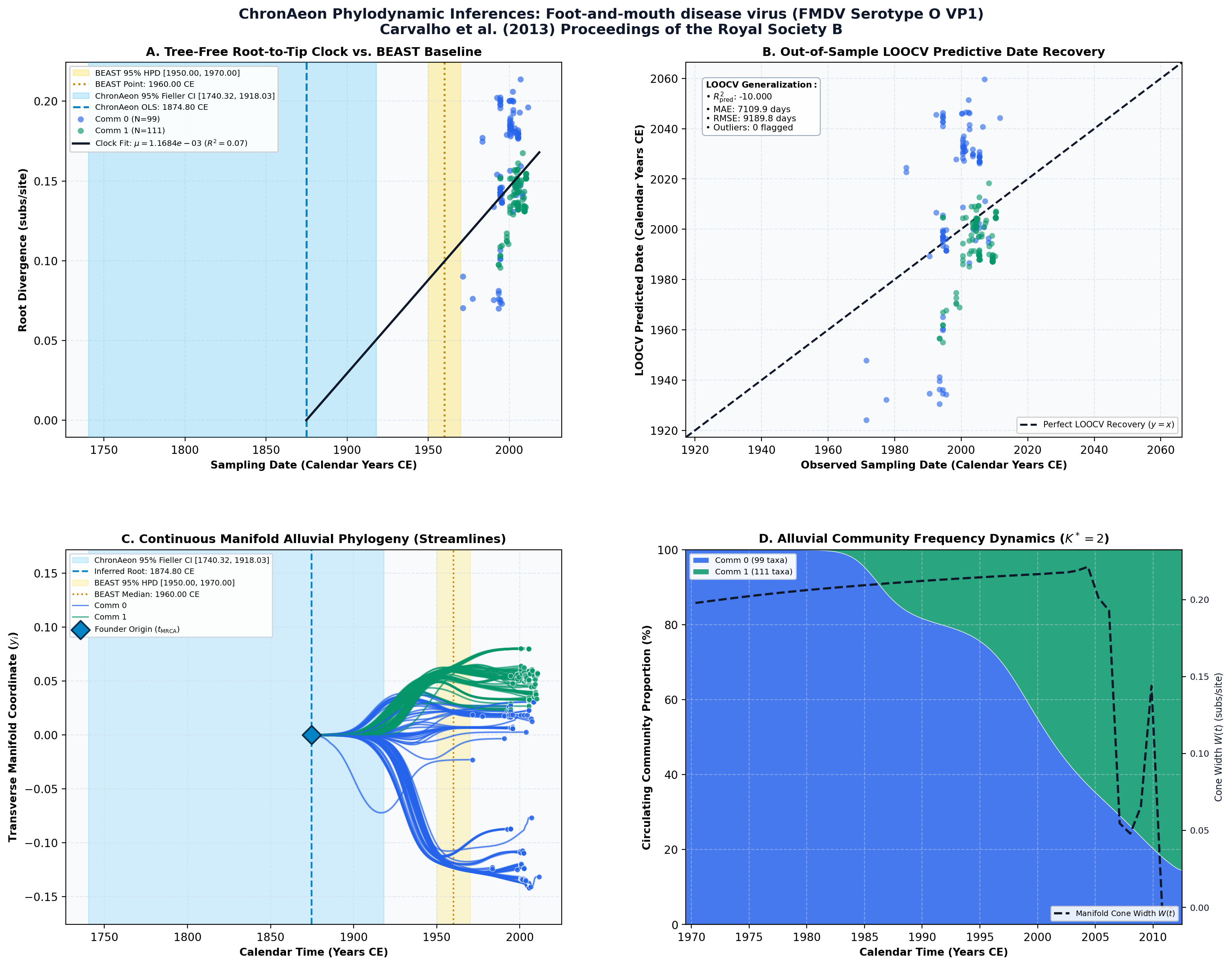

ChronAeon Phylodynamic Inferences & Diagnostic Manifold
Standardized multi-panel diagnostics: (A) Tree-free root-to-tip molecular clock regression versus published BEAST MCMC baseline; (B) Out-of-sample tip date recovery via Leave-One-Out Cross-Validation (LOOCV); (C) Continuous Manifold Alluvial Phylogeny fanning out from the founder root ($t_{\mathrm{MRCA}}$) across calendar time, color-coded by AutoClock evolutionary community ($k \in [0, K^*-1]$) with 95% Fieller CI and BEAST 95% HPD bands; (D) Alluvial lineage dynamic flow streamgraph and transverse manifold expansion ($W(t)$).
Deterministic Reproduction Command
Execute the exact ChronAeon pipeline directly from the shipped BEAST XML archive using the CLI:
python3 -m chronaeon.cli date \ --beast beast.xml.gz \ --loocv \ --nonlinear-clocks \ -o chronaeon_dating.json \ -c chronaeon_dating.csv
